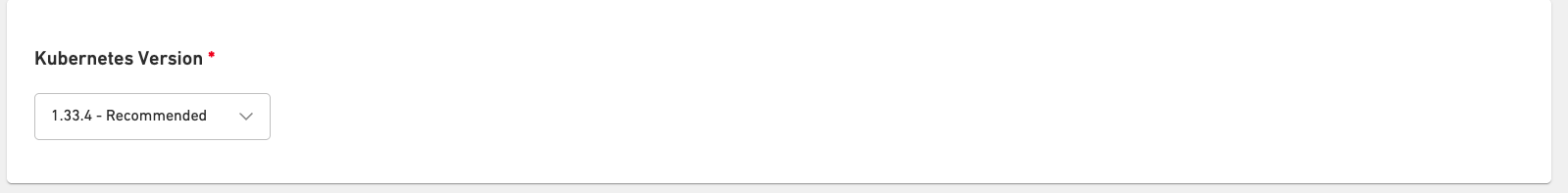

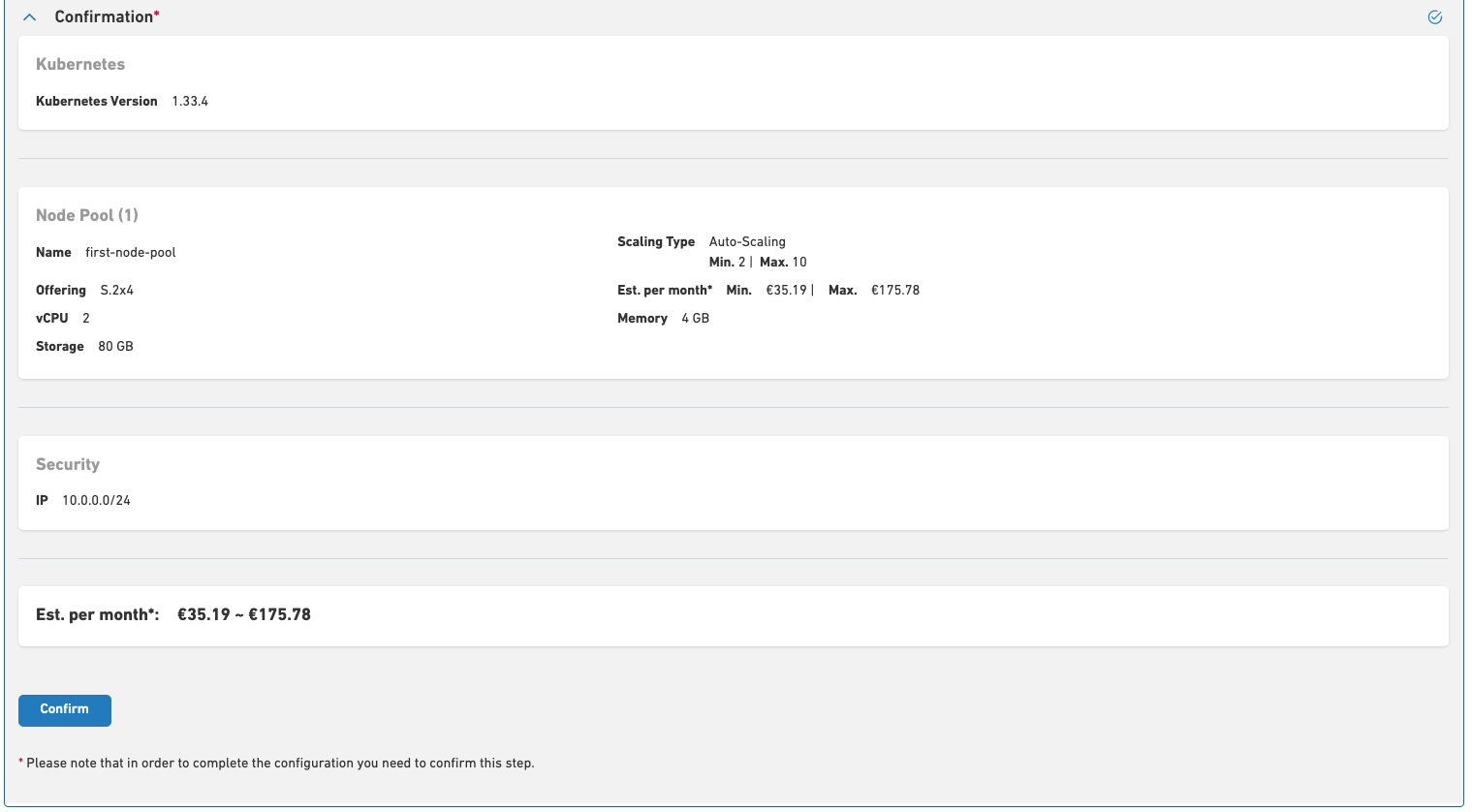

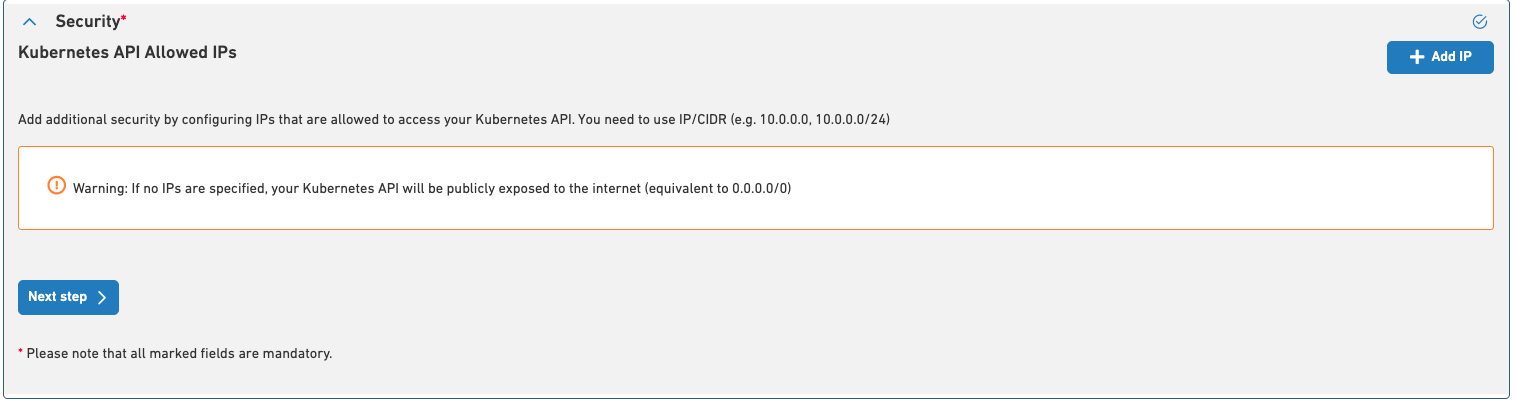

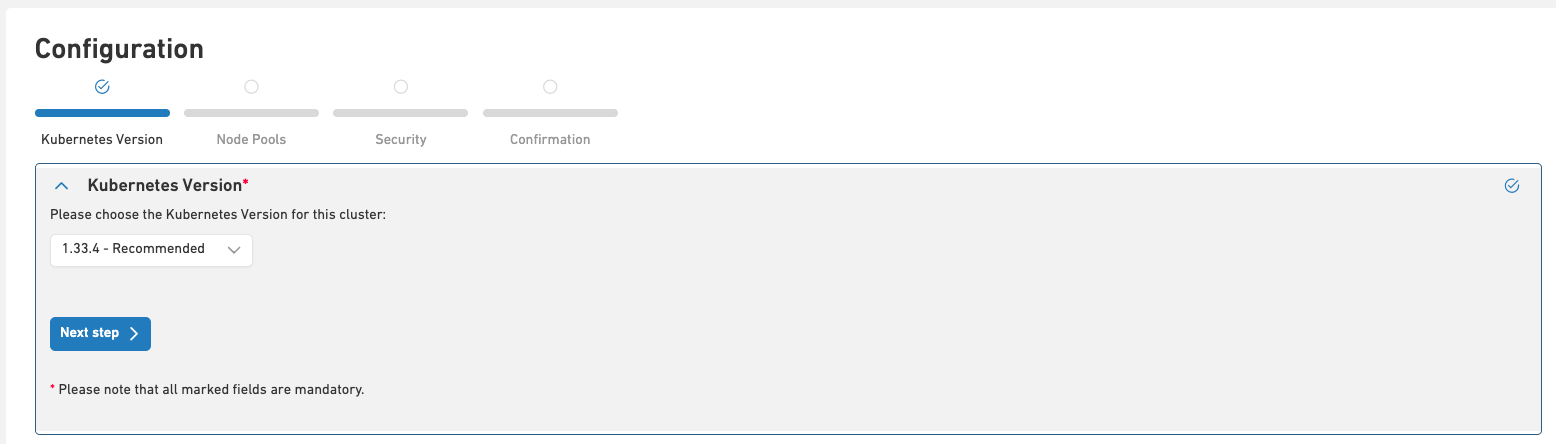

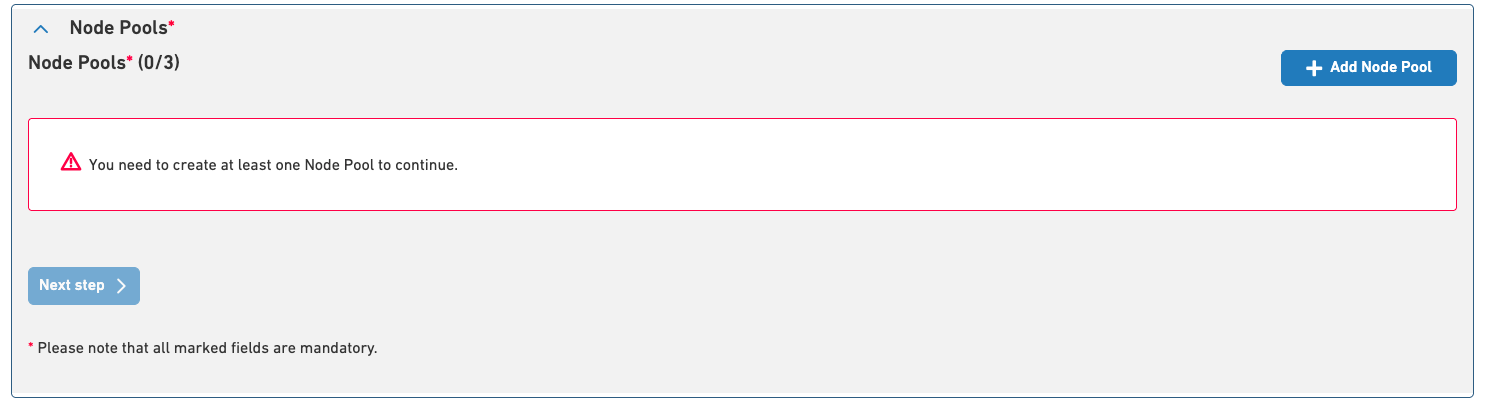

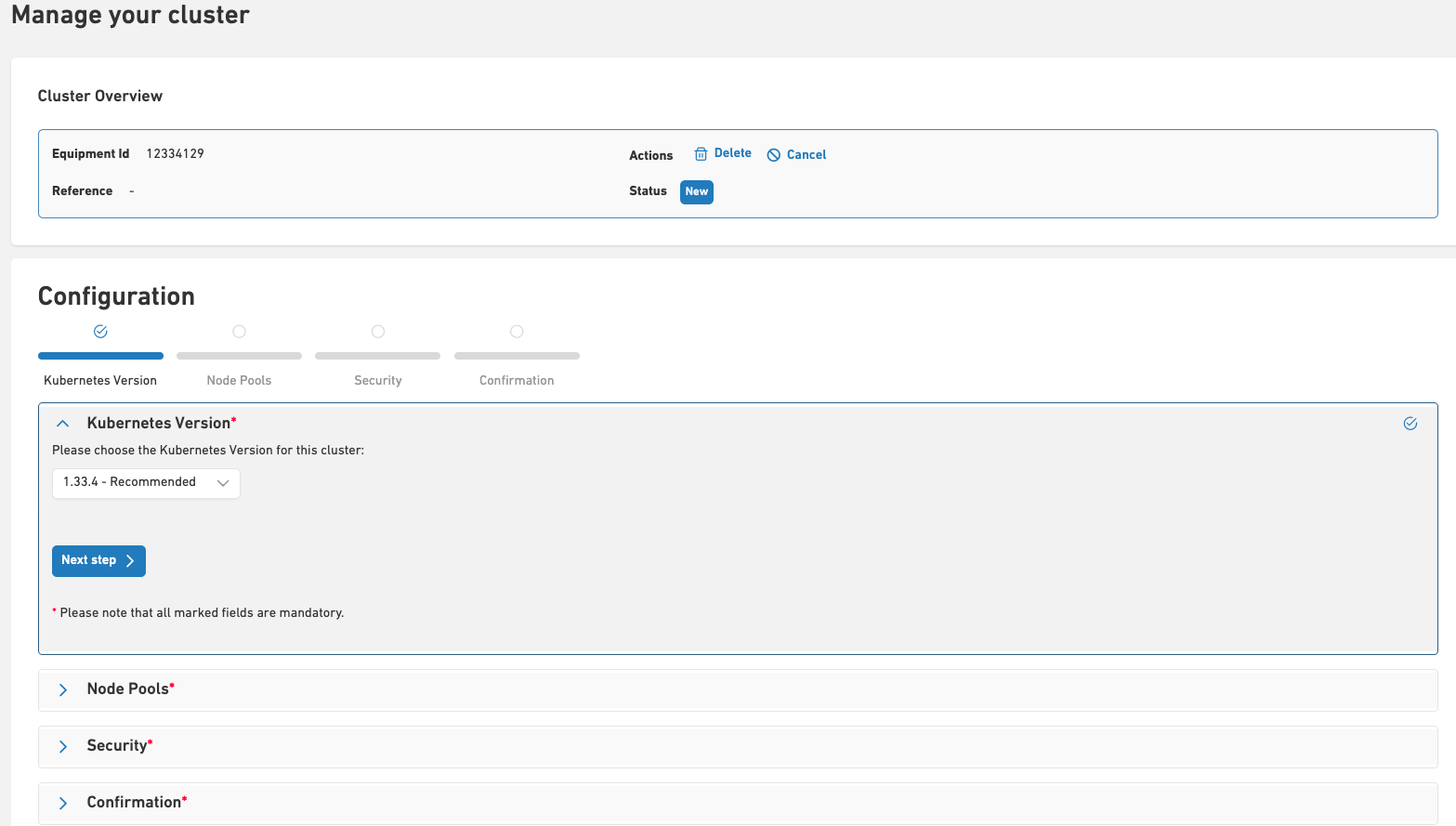

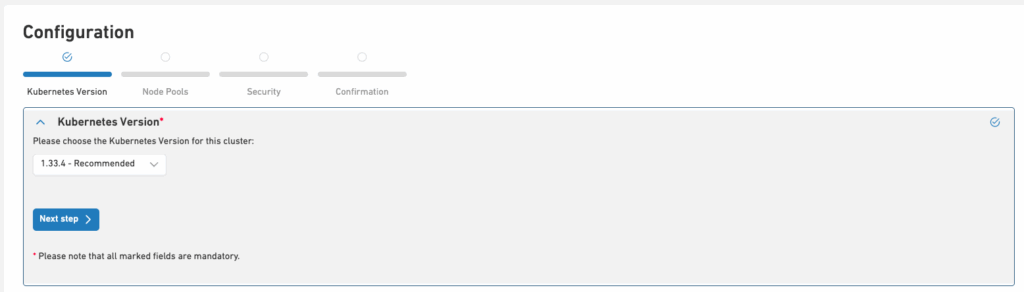

Cluster

The following limits apply per cluster by default:

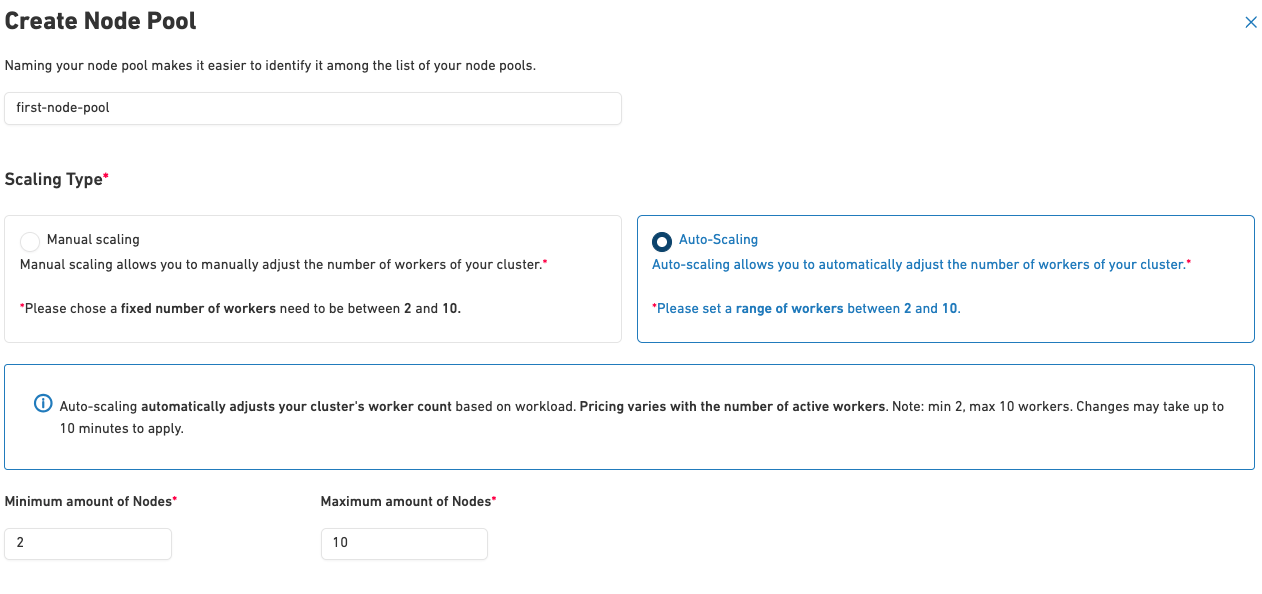

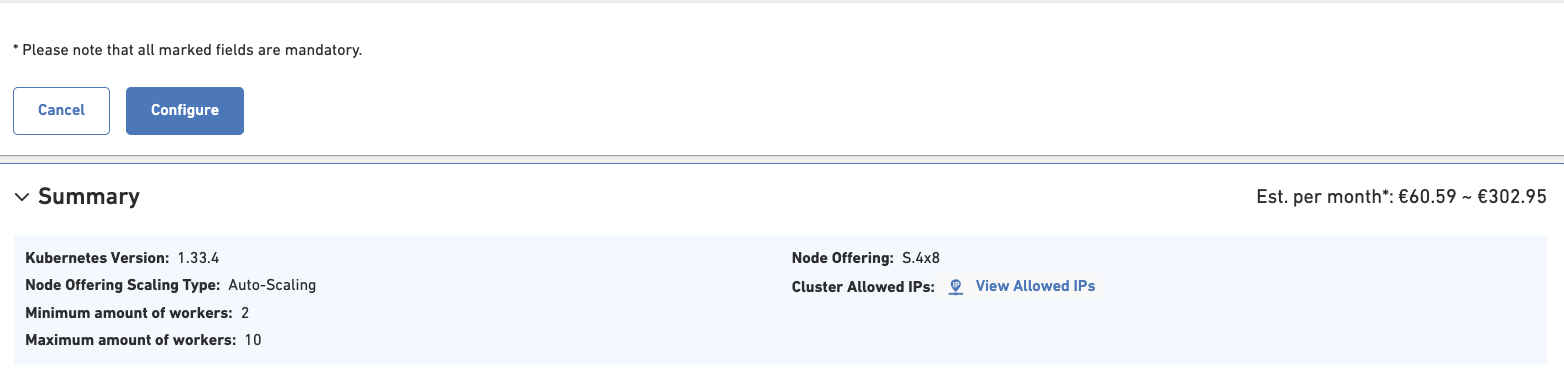

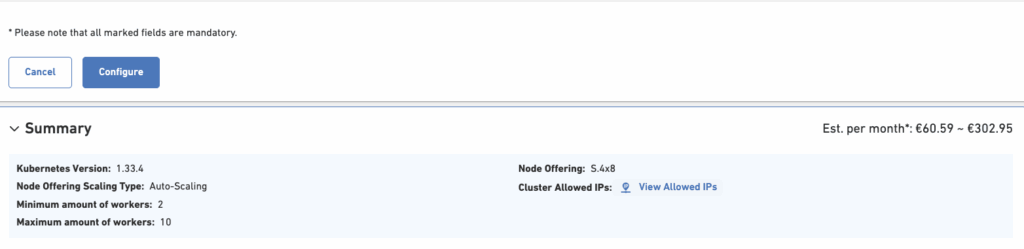

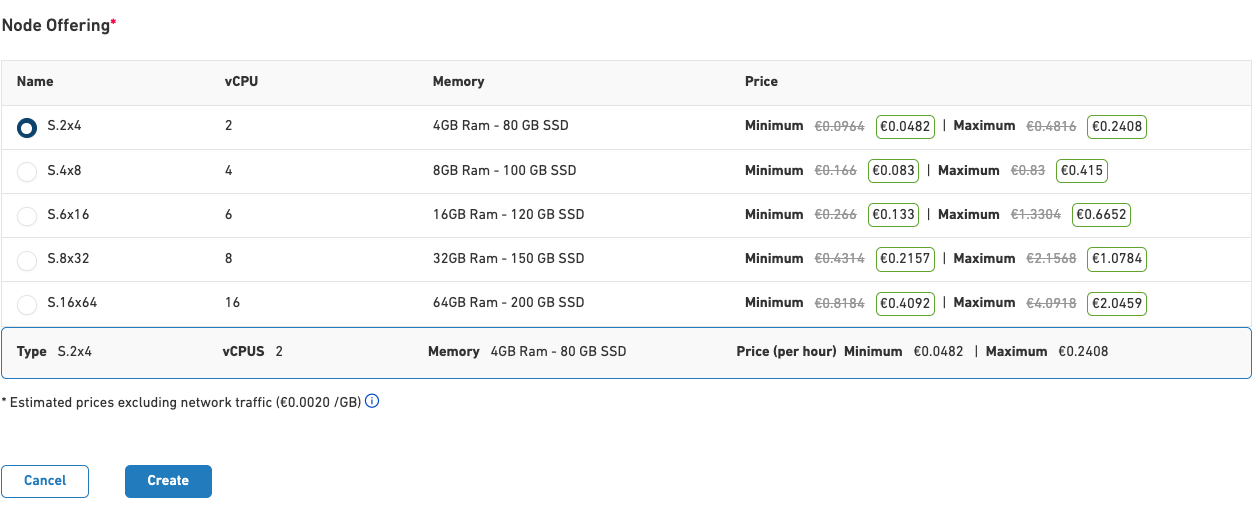

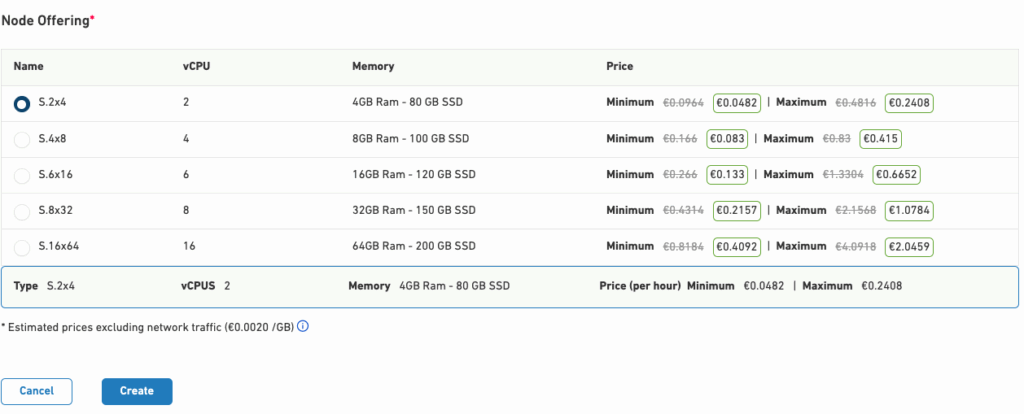

• Worker nodes: 10 by default spread across node pools. You can request up to 100 by opening a support ticket
• Pods per node: 110
• Namespaces: 10,000
• Services per namespace: 5,000
• Services per cluster: 10,000

Networking

Each cluster includes 3 public IP addresses free of charge. The subnet is selected at order time. If you need to change your IP allocation or subnet after the cluster has been created, please contact our sales team by opening a ticket through the Customer Portal.

The total outbound bandwidth available to a cluster is 1 Gbps shared across all nodes. This is a current limitation of the CloudStack vRouter when using isolated networks.

Private networking is not yet available. As a result, traffic to and from Object Storage uses the public network and is therefore subject to standard bandwidth rates. Integration with Leaseweb File Storage and Block Storage is also not possible until private networking is in place.

There are known issues when exposing UDP-based traffic. Workloads relying on UDP — such as VOIP, media streaming, and live media — may experience instability. Contact support before deploying UDP-dependent workloads to production.

Storage & persistent volumes

The following limits apply to persistent volumes provisioned through the CSI driver:

The CSI driver does not support instant snapshots or volume encryption at rest. If encryption is a compliance requirement, it must be handled at the application level.

Volumes can only be mounted by a single node at a time (ReadWriteOnce). ReadWriteMany is not supported — a volume cannot be shared across multiple nodes or pods simultaneously.

Ecosystem & integrations

Leaseweb Object Storage and Leaseweb CDN are available. As noted above, Object Storage traffic is billed at public network rates until private networking is available.

Cloud Connect (powered by Megaport) is not currently available. This integration depends on private networking, which is on the roadmap.

Scheduling & node affinity

Worker nodes are deployed with soft anti-affinity by default. This means the scheduler attempts to spread worker nodes across different physical hypervisors. However, this is not guaranteed — if more worker nodes exist than available hypervisors, or if hypervisors are fully occupied, the scheduler may place multiple workers on the same physical host. Hypervisor maintenance and CloudStack Distributed Resource Scheduler (DRS) rebalancing may also move nodes during the cluster lifecycle.

Control plane components are deployed with hard anti-affinity. At least three copies of the etcd database are always placed on different physical hypervisors — two etcd members cannot share the same physical host.

Most of the times it doesn’t make any difference whether the IP address is floating or not. But extra steps need to be taken if you plan to use your Floating IP range with dedicated servers that run virtual machines (that act as hypervisors). In this artice we’re going to explain how to use floating IP range with Linux hypervisor using Proxmox VE as an example.

The difference between regular IP address and floating IP address

TLDR: the normal IP address are bridged, while floating IP addresses are routed.

Virtualization solutions, such as Proxmox VE, connect your virtual machines directly to the network via bridge. They expect all the IPs to be available within the same layer 2 segment:

However, the floating IPs are always routed to the anchor IP. In other words, Leaseweb router sends the traffic destined for the Floating IP to its anchor IP, expecting it will be forwarded further. In this case, a virtual machine host (hypervisor) must act as a router:

Configure Proxmox to route subnets of an announced range

You announced the whole range (e.g. 192.0.2.0/24) via Leaseweb. That gives you 256 Floating IP addresses.

Most likely, you want to split it over multiple hypervisors (proxmox servers). Something like this:

• The subnet 192.0.2.0/26 (192.0.2.0-192.0.2.63) goes to the hypervisor called Proxmox1
• The subnet 192.0.2.64/26 (192.0.2.64-192.0.2.127) goes to the hypervisor called Proxmox2
• The subnet 192.0.2.128/26 (192.0.2.128-192.0.2.191) goes to the hypervisor called Proxmox3
• The subnet 192.0.2.192/26 (192.0.2.192-192.0.2.256) goes to the hypervisor called Proxmox4

Of course, it is also possible to route the entire subnet to a single server.

Configure a Proxmox server

1. By default, Linux doesn’t perform routing. To enable it, create a file /etc/sysctl.d/10-routing.conf containing the following line:

net.ipv4.ip_forward = 1

Apply it with the command:

sysctl --system

2. In Proxmox web UI, create a new bridge. Assign the first usable IP of the subnet as the bridge IP address, do not specify the gateway, and do not add any ports to the bridge:

3. In Leaseweb customer portal, route the subnet 192.0.2.0/26 to Proxmox1 anchor IP:

Routing the first subnet 192.0.2.0/26 to the first Proxmox server IP

4. Once the steps above are done, you can start creating virtual machines with the following network settings:

Bridge name (specified during virtual machine creation): vmbr0
IP address: anything in range 192.0.2.2-192.0.2.62
Subnet mask: 255.255.255.192 (or /26)
Gateway: 192.0.2.1
DNS servers: 23.19.52.52, 23.19.53.53

5. Repeat the steps above for the rest of proxmox servers.

Conclusion

Despite floating IPs were not initially designed for virtualization, after leveraging some tricks we can make it work so.

The how-to above is made for Proxmox, but can also be applied to any Linux-based hypervisor.

Note.: VMWare ESXi, however, seems to only work in Layer 2 bridge (vswitch) mode. Thus, they can not be used together with Floating IPs.

Overview

To assign an IPv6 address to an instance, your instance must be connected to a network that has an IPv6-enabled subnet and is attached to a router.

If your instance was created before IPv6 was enabled on the network, you may need to reboot the instance for it to obtain an IPv6 address.

Prerequisites

Before your instance can receive an IPv6 address, ensure the following:

• A network has been created.
• The network includes an IPv6 subnet.
• A router is attached to the network.
• Your instance is connected to this network.

Scenario 1: Creating a New Instance with IPv6

If you are launching a new instance:

1. Create a network.
2. Create an IPv6 subnet on the network.
3. Attach the network to a router.
4. Launch the instance and select the IPv6-enabled network.

The instance will automatically receive an IPv6 address during provisioning.

Scenario 2: Enabling IPv6 on an Existing Network

If your instance already exists and you later add an IPv6 subnet to its network:

1. Add an IPv6 subnet to the existing network.
2. Ensure the network is connected to a router.
3. Reboot the instance.

After the reboot, the instance will request network configuration again and should receive an IPv6 address.

Verify the IPv6 Address

After the instance has started (or restarted):

1. Open the Instance Details page.
2. Check the Network section.

If configured correctly, an IPv6 address will be displayed alongside the instance’s IPv4 address (if applicable).

There are two ways to create a network in Public Cloud:

1. From the Networks page
   • Navigate to Public Cloud.
   • Select Networks from the submenu.
   • Click Create Network.
2. During Instance Creation
   • While launching a new instance, you can create and attach a network as part of the deployment process.

Filling in the Create Network Fields

1. In the Leaseweb Customer Portal, navigate to your Public Cloud section
2. Go to the Networks page:
   • Navigate to Public Cloud.
   • Select Networks from the submenu.
   • Click Create Network.

3. Fill in the details as follows:

Best Practice

For most users, the recommended configuration is:

After a network is created, it can be used when launching instances, allowing them to connect to the network. If external connectivity is required, the network can also be attached to a router.

What is Extended Lifecycle Support?

When an operating system (OS) reaches its End-of-Life (EOL) date, the vendor stops issuing security updates, leaving servers and virtual machines on that OS more exposed to vulnerabilities.

WebPros, the company behind Plesk and cPanel, runs an Extended Lifecycle Support (ELS) program for affected OS versions. This gives customers additional time to plan an upgrade while continuing to receive critical security updates.

How ELS fees work

Where an ELS program is active, an additional monthly fee applies per control panel license on the affected OS. Leaseweb passes this fee through to customers and it appears as a separate line item on your invoice.

New ELS fees can be introduced, or prices can be adjusted on a half-yearly or annual basis. Leaseweb will communicate any changes in advance via email.

Affected operating systems

cPanel

Plesk

How to avoid ELS fees

Upgrading to a supported OS is the only way to remove the ELS fee from your invoice. Leaseweb strongly recommends doing this as soon as possible, as running an EOL OS carries security risks regardless of the ELS program, and fees may increase over time.

For a list of currently supported operating systems, refer to the official documentation for Plesk and cPanel.

Projects help you organize resources, users, and access permissions within your Public Cloud environment, which is why you will automatically have a Default Project created for your account.

How to Create a New Project

You can create up to 3 projects per account, including the default project that is created automatically:

1. Open the Project dropdown in the top navigation.
2. Click New Project.
   • You will be redirected to the Project Settings page.

3. Enter:
   • Project Name: A unique name for your project.
   • Description: Optional information describing the purpose of the project.
4. Click Create Project.

How to Manage Projects

The Project Settings page allows you to manage all project-related resources and permissions. Within a project, you can view and manage project quotas, SSH keys and users.

How to Manage Project Quotas

Project quotas define the resources available to the project, such as:

• vCPUs
• RAM
• Volumes

These quotas determine how many resources can be created within the project. Each project comes with the following default resource quotas:

These quotas define the maximum amount of compute, memory, and storage resources that can be allocated within a project. If you require additional resources, you can request a quota increase through our support, by opening a ticket from the Customer Portal.

To increase your quotas, go to Settings, select the project for which you want to increase the quotas, and click Increase Quotas.

A new pop-up will appear, where you can specify the quota limits you would like to set for your project.

After your request has been reviewed, you will receive a confirmation in the ticket.

How to Manage SSH Keys

SSH keys can be managed at the project level and are used to securely access instances created within that project.

From the SSH Keys section, you can:

• View existing SSH keys
• Add new SSH keys
• Remove unused SSH keys

How to Manage Project Users

Users determine who can access and manage resources within a project.

To use the OpenStack API, you must first create a user account. Each user has their own credentials for authenticating with the API and managing resources.

You can create multiple users to collaborate within the same project.

From the Users section, you can:

• View project members
• Add users to the project
• Remove users from the project

Example Project Use Cases

You may choose to separate workloads into different projects, for example:

Using separate projects helps keep resources organized while providing clear visibility into quotas, users, and access management.

When accessing a server’s iLO 3 web portal or virtual console, you may run into browser compatibility problems, firmware quirks, or access-related issues. This article walks you through the step‑by‑step process of connecting to an iLO 3 controller via its web interface and launching the embedded remote console.

It covers the prerequisites you need before you can start:

• How to connect to the remote management VPN
• How to locate your user credentials
• Meet the required browser and Java specifications
• Troubleshoot common connection errors and apply quick‑fix work‑arounds.

By the end of this article, you will be able to:

• Access the iLO 3 GUI securely from any workstation connected to the remote management virtual private network
• Open the virtual console to perform BIOS configuration, OS installation, or hardware diagnostics without physical presence
• Diagnose and resolve typical connectivity problems that prevent iLO 3 access.

What Is iLO3 and Why Is It Important

iLO 3 (Integrated Lights-Out 3) is a remote management technology used in HPE ProLiant servers that allows administrators to monitor and control hardware independently of the operating system. It provides out-of-band access for tasks like remote console access, power cycling, and system health monitoring, even when the server is turned off or unresponsive.

The remote access console allows you to work on your server as if you were sitting in front of it with a physical screen, monitor and keyboard. This makes it possible to make changes to your server before it boots, or inside its BIOS, which are generally not possible via SSH, RDP or other similar remote management methods.

Leaseweb Remote Management VPN

Before proceeding any further with this guide, make sure that you are connected to our isolated, secure, remote management VPN. Please follow these instructions in order to get connected. Once you are connected, you can proceed with this article.

How to Get Your IPMI IP Address and Credentials

To find the IP address and credentials that correspond to your servers IPMI / iLO 3 interface, follow the steps below:

1. Open the Leaseweb Customer Portal
2. Go to your server’s page under the Dedicated Servers option
3. Select Actions -> Remote Management

A window will appear in the center of your screen, similar to the one shown below. This window contains all the information you need to access your server’s IPMI/iLO 3 interface.

Here you will see the IPMI IP address, as well as a link that will load the web interface when clicked. You will also find the username and password (IPMI Credentials) that you will use to log in to the IPMI / iLO 3 interface. We will explain how to use these later in this article.

Back to the top ↑

How to Launch an IPMI Reset

If you are connected to the remote management VPN but cannot log in with your credentials, or the IPMI interface does not load in your browser, we recommend resetting the IPMI controller. Do this by performing an IPMI reset. Click on the launch an IPMI Reset link at the bottom of the window to proceed.

The IPMI reset job will reboot the server and PXE boot it into an automated live environment. During this process, the server’s IPMI/iLO 3 network settings will be reconfigured, and a new username and password will be generated. Once the reset is complete, the updated credentials will be available in your Customer Portal.

HPE Lights-Out Standalone Remote Console for Windows

For the best experience when accessing your server’s console, we recommend you use HPE Lights-Out Standalone Remote Console for Windows.

HPE Lights-Out Standalone Remote Console for Windows is a lightweight application developed by HP that can be installed on your Windows computer. It allows you to access and control your server’s console directly, without the need to use a web browser.

You can download it directly from the HP website. After downloading it, you can proceed to install it. Once the application is installed, you should find an icon like the one shown below on your desktop or in the Start menu under All Programs.

How to Connect to HPE Lights-Out Standalone Remote Console for Windows

1. Opening the program. You will see an interface like the one shown below:

2. To connect to your server’s console you will need your:
   • Network Address
   • Username
   • Password
3. Get these details by following the steps from How to Get Your IPMI IP Address and Credentials
4. Enter the details and click Connect

Once you are connected, you will see a screen similar to the one shown above. From here you can manage your sever just as if you were sitting physically in front of it with a screen, mouse and keyboard.

Back to the top ↑

iLO 3 Web Interface and Console via Browser

The Integrated Lights-Out 3 web interface allows you to manage your server. You can perform actions like shutdown and reboot your server, monitor the health of the hardware and temperature and so much more.

1. To access it, go to Actions -> Remote Management
2. Click on the Login to IPMI Interface button
   • Alternatively, you can enter the IPMI IP Address as a URL in your browser. In this example, the IP address is 10.59.65.25 so the URL would be https://10.59.65.25/

When the web interface successfully loads, you should see the login screen shown below.

iLO 3 TLS Errors

If you see an SSL/TLS error instead of the iLO 3 login screen, know that these errors are very common when accessing the iLO 3 web interface, especially on older hardware. Below are some of the most common SSL/TLS warnings and errors you may encounter.

Error 1: Potential Security Risk Ahead

The warning appears because the SSL certificate on the iLO3 does not match the address used to access it. Since the iLO3 interface is not publicly exposed, and should remain internal, a publicly trusted SSL certificate is not required.

The warning can be concerning, but it is merely informational and does not pose any danger to your IPMI / iLO 3 access.

To proceed past this error:

1. Click the Advanced button
2. Then select Accept the Risk and Continue

Different browsers may display slightly different buttons, but the process to resolve remains the same.

Error 2: This site can’t provide a secure connection

Some browsers may display a TLS error, as shown below, when accessing the iLO 3 web interface. iLO 3 no longer receives firmware updates and only supports TLS 1.1 or earlier, which can cause this error on modern browsers.

To bypass this error and access the web interface, you will need to temporarily enable TLS 1.1 in your browser. If you did not encounter this error when loading the iLO 3 web interface, you can proceed to the next step.

Back to the top ↑

Logging into iLo3

The username and password to log into iLO 3 can be found inside your Leaseweb Customer Portal – see here.

1. Enter your username and password
2. Click Log In to proceed

You will see the below overview. You can check the status of your server, On / Off, as well as the status of the hardware health.

Loading the Console Via the Web Interface

Before proceeding with this section, please make sure you have Java 8 or better installed on your system. You can download it from Java.com.

1. To open the console, click on the Java Web Start link
2. This will initiate a download. Once the download finishes, double-click on it to run it.

3. Click Continue to finalize the installation

Back to the top ↑

Java Security Errors

You may receive a Java security error message when attempting to launch the Java Web Start, which is very common and a result of Java’s strict security settings. Please follow this KB Article here to add the URL of your server’s IPMI interface into Java’s Exception Site List.

After clicking Continue above, you should see this message. Check off the checkbox to the left and click Run.

The below image confirms that you have successfully opened your server’s console via the web interface:

From this console you can make BIOS level changes and boot your server with custom images. Proceed to the next step to learn how to mount an ISO image.

How to mount an ISO

When managing a server, it is sometimes necessary to use an ISO image to boot the server into specialized software and tools, or to perform a custom operating system installation.

1. Open the console interface
2. Click on the Virtual Devices menu at the top
3. Click on Image File CD/DVD-ROM

4. Find and select the ISO image you need and click Open

5. Click on the Virtual Devices menu at the top once again to confirm your ISO image was successfully mounted, if you see a check mark next to Image File CD/DVD-ROM
   • If no check mark is shown, try again from step 2

6. Reboot the server -> click Keyboard -> CTRL-ALT-DEL. This will initiate a graceful reboot of your server

Back to the top ↑

Troubleshooting ISO Booting

If you successfully mounted an ISO but the server did not boot from it, the boot order may be configured to prioritize the server’s internal disk over the virtual CD-ROM drive. The cause could be that the server started the operating system that was already installed instead of booting from the mounted ISO.

1. To rearrange your boot order, reboot and press the F9 key as the server boots. This will take you into the BIOS menu

2. Go to the Standard Boot Order (IPL) section in the BIOS menu
   • You may notice that the CD-ROM device is set to 3 in the boot order, while the Hard Disk is set to 2. This means the Hard Disk has higher priority. If an operating system is already installed on the Hard Disk, the server will boot into it instead of the ISO you just mounted

3. Using the arrow keys move the CD-ROM option up to number 2
4. Press the ESC key followed by the ESC again to go to the main menu
5. Press F10 to Exit the BIOS menu and reboot.

Back to the top ↑

Alternatives for Custom OS Installation

If you experience issues installing the operating system using the ISO boot method, you can use the netboot.xyz option available through our automation.

Netboot.xyz uses PXE/network booting instead of booting directly from an ISO image. When the server boots from the network, netboot.xyz downloads the installation files and boot components required for the selected operating system directly from the configured repositories. This allows the operating system installation to proceed without mounting or booting from an ISO image.

1. Go to Actions -> Customer Installation
2. Select the boot file netboot.xyz menu
3. Check the Power cycle after the creation of the reservation box
4. Click Submit.

The server will reboot on the netboot.xyz boot file to load the neboot.xyz menu. If you chose to gracefully reboot your server, you could leave the power cycle after the creation of the reservation checkbox unchecked. Once netboot.xyz has booted it should look as shown below.

To learn more about netboot.xyz and other PXE boot option, check out this Knowledge Base article.

The OpenStack Command Line Interface (CLI) enables you to manage your Leaseweb Public Cloud resources directly from the terminal. Using the CLI, you can create and manage instances, networks, volumes, security groups, floating IPs, and other OpenStack resources without relying on the Customer Portal.

This guide walks you through installing the OpenStack CLI using either Python’s pip package manager or your operating system’s native package manager. It also explains how to configure authentication using a clouds.yaml file, connect to your Leaseweb Public Cloud project, and verify that your CLI is ready to use.

Install Openstack CLI

Via pip

Prerequisites:

• Your system must have Python 3 interpreter installed
• Your Python interpreter must have venv module installed

1. Create a python virtual environment in some folder:

python3 -m venv openstack-venv

2. Load the virtual environment:

. openstack-venv/bin/activate

3. Install python-openstackclient package:

pip install python-openstackclient

On Windows

Windows does not have the Python interpreter installed by default. Therefore, you should install it first, either inside WSL, or by downloading the installer from the official website: https://www.python.org/downloads/windows/

When installing, we advice you set the “Add python.exec to PATH” enabled, so you don’t have to type full path to python binary.

Once the python is installed, you may use the following commands to install python-openstackclient:

# Create virtual environment
python.exe -m venv openstack-venv

# Load it (you may need to run "Set-ExecutionPolicy -ExecutionPolicy RemoteSigned" in Powershell as Administrator
.\openstack-venv\Scripts\Activate.ps1

# Install python-openstackclient package
pip.exe install python-openstackclient

# Run openstack client
openstack

Via package manager

As the alternative for installing into a virtual environment directly from PyPi repository, you may use the openstack client packages most operating systems provide

Debian / Ubuntu

Install the python3-openstackclient package:

apt install python3-openstackclient

AlmaLinux / RockyLinux / Other RHEL-based

Install the python3-openstackclient package:

dnf install python3-openstackclient

Arch Linux

Install the python3-openstackclient package:

pacman -S python3-openstackclient

MacOS (Homebrew)

Install the openstackclient package:

brew install openstackclient

Connect to Leaseweb Public Cloud

Once the Openstack client is installed, you have to provide it with the clouds.yaml file with your credentials.

Obtain the credentials from Leaseweb Customer portal

1. Log in to the Leaseweb customer portal at https://secure.leaseweb.com
2. Navigate to the Public Cloud -> Settings page.
3. Switch to the Users tab and create a new user if necessary.
4. At the Projects tab, click Edit button next the project you want this user be member of.
5. Switch to the Users tab, and add your user to the project.

Once the user is created, take a note of the following items:

• Project name
• User name you have created
• The password for the user you have created
• Your customer ID: you can find it by clicking on the icon of your customer portal user in the top right corner of the page. This number is displayed under your company name.
• Availability zone name: it is displayed on the top right corner of most of the Public Cloud customer portal pages.

Create clouds.yaml file

Once you have all the credentials at hand, create the file ~/.config/openstack/clouds.yaml with the following content:

clouds:
  openstack:
    auth:
      auth_url: https://identity.leasewebcloud.com/v3
      username: "<the user you have created at previous step>"
      project_name: "<the name of the project>"
      project_domain_name: "<the customer ID you have obtained at previous step>"
      user_domain_name: "<the customer ID you have obtained at previous step>"
    region_name: "<the availability zone name, e.g. eu-west-3-az1>"
    interface: "public"
    identity_api_version: 3

Verify that the connection works:

openstack project list
# .. it should not return any error

Using clouds.yaml with multiple availability zones / regions

The clouds.yaml file allows storing multiple credentials in it so you don’t have to maintain multiple files with multiple regions, projects, and availability zones credentials. Simply define multiple credentials under the clouds: section:

clouds:
  az1-project1:
    auth:
      auth_url: https://identity.leasewebcloud.com/v3
      username: "<the user name>"
      project_name: "project1"
      project_domain_name: "1234567"
      user_domain_name: "1234567"
    region_name: "eu-west-3-az1"
    interface: "public"
    identity_api_version: 3
  az2-project2:
    auth:
      auth_url: https://identity.leasewebcloud.com/v3
      username: "<the user name>"
      project_name: "project2"
      project_domain_name: "1234567"
      user_domain_name: "1234567"
    region_name: "eu-west-3-az2"
    interface: "public"
    identity_api_version: 3

Set the value of the OS_CLOUD environment variable to the credentials you want to use, or use the command line argument –os-cloud=<credentials name> to use it:

# Set the environment variable OS_CLOUD to use credentials az1-project1
export OS_CLOUD="az1-project1"

# List instances
openstack server list

# Or set it via command line arguments
openstack --os-cloud=az2-project2 server list

Create a Load Balancer

A Load Balancer distributes incoming traffic across multiple backend instances, improving the availability, scalability, and reliability of your applications.

This article explains how to create a Load Balancer, the required network configuration, and the available deployment options.

Prerequisites

Before creating a Load Balancer, ensure that:

• You have an existing project.
• You have created a Network.
• The Network contains at least one Subnet.
• Your instances are connected to the same Network

Note: A Load Balancer cannot be created without an existing subnet.

Network Requirements

• A Load Balancer must be attached to a Subnet within a Network.
• During the creation process, you will be asked to select an existing subnet.
• The Load Balancer is created on the selected subnet and is used to route traffic to backend instances.

• If you do not already have a network, complete the following steps first:
  • Create a Network.
  • Create a Subnet within the network.
  • Connect your backend instances to the subnet.

Public Connectivity

A Network by itself does not provide connectivity to the public Internet. If you want your application to be publicly accessible, the Network must be connected to a Router.

The router provides connectivity between your Network and the external network.

Without a Router, the Load Balancer is only reachable by resources connected to the same Network.

Create a Load Balancer

Launch wizard consists of the following configuration steps.

1. Select a Region
   • Select the region where the Load Balancer will be deployed.
2. Select an Availability Zone
   • Choose the Availability Zone where the Load Balancer will be deployed.
     • AZ-01
     • AZ-02
   • A Load Balancer can currently distribute traffic only to backend instances located in the same Availability Zone. For example, a Load Balancer deployed in AZ-01 can balance traffic only to instances running in AZ-01.
3. Select an Instance Type
   • Choose the Load Balancer size that best matches your expected workload.

4. Add a Name for your load balancer instance
5. Add a Description for your load balancer instance (optional)
6. Select a Subnet
   • Select the subnet where the Load Balancer Virtual IP (VIP) will be created.
   • Only subnets within the selected Availability Zone are available for selection.
   • The selected subnet must be connected to the backend instances that will receive traffic.


Review and Create

Review the selected configuration:

• Region
• Availability Zone
• Subnet
• Instance Type

If everything is correct, click Create Load Balancer.

The Load Balancer will enter the Creating state while it is being provisioned.

Once provisioning is complete, the status changes to Active, indicating that the Load Balancer is ready to be configured.

Launch a Load Balancer with terminated HTTPS

Step 1. Add your certificate and private key as secrets.

• In the Customer Portal, go to Public Cloud (new).
• Open Settings, select your project and go to the Secrets tab.
• Click Add Secret.
  • Select the secret type:
    • Certificate: for your TLS certificate.
    • Private Key: for the matching private key

• Give the secret a name you’ll recognise, for example example-com-cert, and paste the PEM content.
  Repeat these steps for the other item, so that you end up with one certificate secret and one private key secret.


Step 2: Create a certificate container.

A container groups your certificate and private key so the load balancer can use them as a pair.

• Still under Project Settings, open the Containers tab.
• Click Create Container.
• Enter a name for the container, for example example-com-tls.
• Select your certificate from the Certificate dropdown
• Select your private key from the Private Key dropdown.
• Your container now appears in the list. Wait until its status is Active before you continue. The listener only accepts active certificate containers.

Step 3: Launch a Load Balancer

• In Public Cloud (new), go to Load Balancers.
• Click Launch Load Balancer.
• Fill in the required details and confirm.
• Wait until the load balancer is ready, then click it to open its detail page.

Step 4: Create an HTTPS listener

• On the load balancer detail page, open the Listeners tab.
• Click Create Listener.
• Under Protocol, select TERMINATED_HTTPS.
• A Certificate Container dropdown appears. Select the container you created in Step 2. The listener uses this container to get the TLS certificate and private key.
• Fill in the other listener settings, such as the port (usually 443), and click Create.

To send traffic to your instances, open the Pools tab, create a pool, add your instances as members and link the pool to the listener.
